The spectral manifestations of leprosy reflect the host's immune response against Mycobacterium leprae.1 As an obligate intracellular bacterium, the effectiveness of the immune response against leprosy primarily relies on cellular immunity, with the balance between Th1 and Th2 playing a pivotal role in determining the clinical presentation of the disease. The progression from tuberculoid (localized) to lepromatous (disseminated) leprosy is marked by a shift from Th1 (cellular) to Th2 (humoral) response. Consequently, the cytokine profile varies between presentations, with Th1 cytokines (such as IFN-γ, IL-2, and IL-12) in tuberculoid leprosy and Th2 cytokines (such as IL-4, IL-5, IL-10, and TGF-β) in lepromatous leprosy.2

“Indeterminate” leprosy presents with a hypochromic macule with diminished local sensitivity, potentially evolving with spontaneous healing or progressing to a classic presentation. This type of leprosy has no clear predominance of Th1 or Th2 response.1

Leprosy reactions are episodes of acute hypersensitivity characterized by the worsening of previous lesions or the appearance of new ones. Type 1 reaction is a type IV hypersensitivity reaction characterized by an exacerbation of the cellular immune response against M. leprae, with significant secretion of TNF-α, IFN-γ, IL-2, IL-1β, and IL-6.3 Type 2 reaction involves a systemic inflammatory process related to extravascular deposition of immune complexes and neutrophilic exudate, with high levels of TNF-α, IL-2, IL-4, IL-5, IL-6, and IL-10.3

In 1993, Modlin et al.4 published studies linking the clinical spectrum of leprosy to Th1-Th2 responses. Since then, most of the research in leprosy immunology has concentrated on T-cells. Although Ridley et al. first described the presence of B-cells in 1974, the focus on T-cells over the decades led to limited investigation into the role of B-cells.5 It was only recently, in 2017, that Fachin et al.6 revealed an increased presence of B-cells in the Th1 pole, challenging the previous assumption that B-cells would be predominantly associated with the Th2 pole, which is typically linked to humoral responses.

Mammalian B-cells encompass distinct subsets, including Follicular B2 cells, B1-cells, Marginal Zone B-cells (MZB), B-Regulatory cells, and B-Effector-1 (Be1) cells.7,8 B1-cells, originating during fetal development, inhabit the peritoneal cavity, exhibiting self-renewal and spontaneous IgM secretion. Despite controversies in the literature regarding the characterization of B1 B-cells in humans,9–11 reports indicate that they constitutively express CD5 (B1a cells) and spontaneously secrete multi-reactive IgM, facilitating early bacterial clearance.12

MZ B-cells, another category of B-lymphocytes, inhabit the marginal zone of lymphoid follicles within the spleen and several other tissues.13 These cells orchestrate swift antibody responses against blood-borne microbes rich in polysaccharides. Along with B1-cells, a subset of MZ B-cells, specifically the transitional type 2 marginal zone precursor (T2-MZP) B-cells, are termed Innate-Like B-Lymphocytes (ILBs) or innate B regulatory cells (Bregs) due to their ability to secrete IL-10, a regulatory cytokine.14 Bregs contribute to cutaneous immune responses and exhibit both pro-inflammatory and regulatory actions.15

A recently recognized B-cell subset, the B-effector-1 (Be1) cell, shares resemblances with T-helper-1 (Th1) cells and seems to bridge innate and adaptive immune responses.16,17 Be1 cells release inflammatory Th1-like cytokines such as IFN-γ, TNF-α, and IL-12.18,19

By dissecting the intricate interplay between these B-cell subsets and the mycobacterial environment within leprosy lesions, the present investigation aims to provide a comprehensive understanding of the in situ immune response in leprosy. The present findings hold the potential to inform therapeutic strategies and refine disease management approaches, opening new avenues for effective intervention.

This study involves a case series examination. Initially gathered for diagnosing and classifying classical forms of leprosy and reactive states, skin samples have been selected from the archives of the Dermatopathology Laboratory at the Dermatological Clinic, Department/Division of the University of São Paulo Medical School. These samples were processed using histological techniques and embedded in paraffin. The authors examined skin samples from 95 patients with various clinicopathological manifestations of leprosy. These included Lepromatous leprosy (18 samples), Tuberculoid leprosy (23 samples), Indeterminate leprosy (14 samples), Type 1 Reaction (19 samples), and Type 2 Reaction (21 samples). Specifically, for comparisons within the CD20 group, the authors utilized a control group comprising samples of normal skin from 10 patients. In contrast to Dendritic and T-cells, B-cells are known to be very scarce in normal skin under homeostatic conditions.20 Nonetheless, the authors established a dedicated control group for CD20 to reaffirm this observation and eliminate the need for controls in B-cell subsets. All histological samples of leprosy lesions were stained with hematoxylin-eosin and the acid-fast bacilli staining technique (Faraco technique) for diagnostic confirmation. Additionally, patient records were consulted to aid in the classification and composition of study groups.

Samples from 95 cases and 10 controls were analyzed. Among the cases, the male-to-female ratio was 11:9, indicating a slightly higher representation of males. This group had an average age of 44.64, from 8 to 84 years. In the control group, the average age was (44.7-years.) with a corresponding male-to-female ratio of (5:5).

Presence and distribution of single-labeled cells

The presence and distribution of B-lymphocytes differed in the tissue response among the studied leprosy groups. B-cells were observed in the papillary dermis and around epithelioid granulomas in tuberculoid leprosy samples (Fig. 1A). In indeterminate leprosy, B-cells were scarce and, when present, were located near blood vessels and cutaneous adnexa (Fig. 1B). Rare lymphocytes were observed alongside vacuolated macrophages in the tissue response of lepromatous leprosy samples (Fig. 1C). B-cells were slightly more abundant, arranged around granulomas, in type 1 reaction leprosy (Fig. 2A) and scarce in type 2 reaction leprosy skin samples (Fig. 2B).

Fig. 1.

B (CD20+) cells in tuberculoid leprosy arranged around granulomas (A) and cells immunolabeled with the MZB1 antibody (D). Presence of rare perivascular B-cells (B) and absence of MZB1 expression (E) in indeterminate leprosy. In lepromatous leprosy, note rare clusters of B-cells within the diffuse macrophage infiltrate (C) and rare cells immunolabeled with the MZB1 antibody, some of them with plasma cell morphology (inset) (F). Immunohistochemical technique, diaminobenzidine chromogen, and counterstaining with hematoxylin. Scale bars (left top) indicate the magnification.

Fig. 2.

In type 1 reaction, B (CD20+) cells are present in the papillary dermis and around epithelioid granuloma in the reticular dermis (A). Cells immunolabeled with the MZB1 antibody are observed in the papillary dermis; however, they are absent around the granuloma (C). In type 2 reaction, rare B-cells amidst the regressive macrophage infiltrate (B) and a few clusters of cells immunolabeled with the MZB1 antibody, some of them with plasma cell morphology (inset) (D). Immunohistochemical technique, diaminobenzidine chromogen, and counterstaining with hematoxylin. Scale bars (left top) indicate the magnification.

Cells immunostained with the MZB-1 antibody exhibited morphology, sometimes like lymphocytes, sometimes slightly larger and resembling plasma cells. They appeared scarcer than CD20 in tuberculoid leprosy samples (Fig. 1D) and extremely scarce or absent in indeterminate leprosy samples (Fig. 1E). On the other hand, in lepromatous leprosy samples, MZB-1 positive cells were more frequently observed than B-cells and exhibited plasma cell and plasmablast morphology (Fig. 1F). In type 1 reaction samples MZB-1-positive cells were distributed in the papillary dermis and, in some cases, they were scarce or even absent around granulomas (Fig. 2C) contrary to what was observed in tuberculoid leprosy samples. Type 2 reaction samples displayed MZB-1-positive cells forming small clusters, and like lepromatous leprosy samples, they showed a morphological appearance of plasma cells (Fig. 2D).

Given that the MZB-1 antibody reveals the MZB-1 protein, associated with the processing and secretion of immunoglobulins and present in the endoplasmic reticulum of B-cells in the marginal zone of lymphoid follicles, plasmablasts, and plasma cells,20 the authors decided to compare the mean expression area fraction of CD20 (B-cell marker) with the mean expression area fraction of MZB-1 in each leprosy group. That was an attempt to ascertain whether MZB-1 expression was solely attributable to the presence of plasmablasts and plasma cells in the tissue response of the studied samples. Table 1S in Supplementary materials demonstrates the statistical analysis results of these comparisons.

Presence and distribution of double-labeled cells

The authors observed a sparse presence of double-labeled cells in all evaluated B-cell subpopulations. Fig. 3 (A, B, C, and D) illustrates some of these cases, contrasting with the infiltrates shown previously for CD20 mainly in tuberculoid and type 1 leprosy reaction samples. In addition, slide reading using the Confocal Immunofluorescence Microscopy technique revealed the presence of PAX5/IgM (B1-cells) in cases of T1R (Fig. 3E).

Fig. 3.

B1-cells (PAX5+/CD5+) in tuberculoid leprosy (A); Be1-cell (CD20+/Tbet+) in type 1 reaction (B); Breg cell (CD20+/c-MAF+) in type 1 reaction (C); B1 and MZB cells (PAX5+/MZB1+) in tuberculoid leprosy (D), double immunolabeling technique using diaminobenzidine chromogen (brown) for PAX5 and T-bet and PermaGreen (green) for CD20 antibody; B1-cell (PAX5+/IgM+) in laser confocal microscopy in type 1 reaction (E). Arrows indicate the respective cells. Scale bars – indicate the magnification.

Morphometric and statistical analyses

The mean rank differences observed in Dunn's multiple comparisons test delineate distinctions in the ratio of double-labeled positive cells in comparison to single-positive PAX5 or CD20 cells per unit area among distinct leprosy groups. The differences in medians between groups with statistically significant comparisons are summarized in Table 2, along with their respective p-values. Fig. 4 displays the medians for all groups in graphical form, along with their corresponding measures of central dispersion.

Table 2.

Differences in medians between the groups with statistically significant comparisons and their respective p-values.

CD20
Dunn's multiple comparisons test	Mean rank difference	Adjusted p-value
LT vs. LL	51.82	<0.0001
LT vs. I	58.67	<0.0001
LT vs. Controls	48.57	0.0002
LL vs. T1R	-41.31	0.0004
LL vs. T2R	-37.8	0.0016
I vs. T1R	-48.17	<0.0001
I vs. T2R	-44.66	0.0002
T1R vs. Controls	38.07	0.0145
T2R vs. Controls	34.56	0.0374

MZB-1
Dunn's multiple comparisons test	Mean rank difference	Adjusted p-value
TT vs. I	35.07	0.0006
LL vs. I	36.58	0.0007
I vs. T1R	-32.17	0.0066

PAX5/CD5
Dunn's multiple comparisons test	Mean rank difference	Adjusted p-value
LL vs. T1R	-22.93	0.0245
I vs. T1R	-30.86	0.0024
T1R vs. T2R	30.17	0.0005

CD20/Tbet
Dunn's multiple comparisons test	Mean rank difference	Adjusted p-value
TT vs. I	27.33	0.0055
TT vs. T2R	22.86	0.0123
I vs. T1R	-27.29	0.0096
T1R vs. T2R	22.82	0.0227

CD20/c-Maf
Dunn's multiple comparisons test	Mean rank difference	Adjusted p-value
I vs. T1R	-15.74	0.0373

PAX5/MZB-1
Dunn's multiple comparisons test	Mean rank difference	Adjusted p-value
TT vs. T1R	-31.18	<0.0001
LL vs. T1R	-37.5	<0.0001
I vs. T1R	-37.5	<0.0001
T1R vs. T2R	35.53	<0.0001

LT, Tuberculoid form; I, Indeterminate form; LL, Lepromatous form; T2R, Type 2 leprosy Reaction; T1R, Type 1 leprosy Reaction.

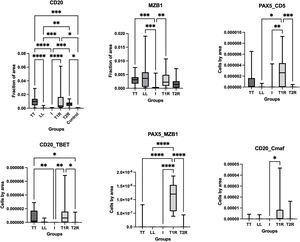

Fig. 4.

Medians for all groups in graphical form, along with their corresponding measures of central dispersion. The asterisks indicate statistically significant post hoc comparisons. LT, Tuberculoid Leprosy; I, Indeterminate leprosy; LL, Lepromatous Leprosy; T1R, Type 1 leprosy Reaction; T2R, Type 2 leprosy Reaction.

The present study observed a higher area fraction of CD20+ cells (B-cells) in the tuberculoid pole of leprosy compared to the lepromatous pole, which is consistent with recent literature findings.25,26 The lepromatous leprosy group, however, exhibited a lower B-cell component compared to the reactional groups, both Type 1 (T1R) and Type 2 (T2R).

The involvement of B-cells in mycobacterial infections has been discussed in the literature, particularly in the context of granuloma formation, cytokine production, T-cell responses, and antigen presentation.27 This could explain the higher expression of CD20 and the presence of B-cells in the granulomatous response group, aligning with literature data. Interestingly, this study demonstrated that reactional states (T1R and T2R) exhibited a higher population of B-cells compared to the lepromatous group. In T1R, this could be related to the better organization of the granulomatous response. In T2R, however, these findings differ from those reported by Biswas et al.,25 who found fewer B-lymphocytes in T2R compared to multibacillary leprosy. These authors correlated the presence of B-lymphocytes in T2R with poorly formed granulomas, which might not fully align with the present observations.

Lesions from indeterminate leprosy demonstrated lower B-cell expression compared to the tuberculoid group and the reactional groups (T1R and T2R). This might be due to the less intense inflammatory response or the undefined polarization of this group.

The MZB-1 molecule, encoded by the MZB-1 gene, is present in the endoplasmic reticulum and functions as a chaperone involved in the folding and secretion of Immunoglobulin M (IgM). MZB-1 is a marker for B-lymphocytes, particularly B1-cells, Marginal Zone-B (MZB) cells, plasmablasts, and plasma cells.28 B1-cells are known for secreting IgM, characterizing them as part of the early humoral immune response. The authors chose this marker to demonstrate the presence or absence of this B-lymphocyte subtype in leprosy lesions. However, the authors could demonstrate the expression of IgM in PAX5-positive cells (B-cells) only through immunofluorescence and confocal microscopy, as the results obtained by immunoenzymatic techniques were unsatisfactory.

MZB-cells, like B1-cells, are part of the innate immune response and play essential roles in the early stages of humoral immune responses.28 MZB-cells reside in lymphoid follicles, particularly in the spleen, and efficiently transport antigens from the blood to the follicles, where they activate CD4+ T-cells and induce the differentiation of B-cells into plasma cells.29 In the present sample, MZB-1 expression was higher in tuberculoid leprosy than in the indeterminate form. Interestingly, MZB-cells expressing MZB-1 correlate with a higher number of infiltrating CD8+ T-lymphocytes in the tumor environment of pancreatic carcinoma and are associated with a better prognosis for this neoplasm.20

Analyzing the expression of CD20 and MZB-1 in the studied groups, the authors found that in the Tuberculoid (TT) leprosy group, CD20 expression was higher than that of MZB-1. This is probably because MZB-1 stains B1/MZB/plasma cells, and plasma cells are strongly associated with the Th2 (humoral) response in leprosy, which is scarce in the Th1 pole.25,26 In addition, the authors observed that, in double-labeling techniques, MZB and B1-cells were much scarcer than CD20-positive cells in all groups of patients, including TT.

On the other hand, in the Lepromatous group (LL), CD20 expression was lower than that of MZB-1. In LL, the plasma cell component is significant, and in this context, the MZB-1 antibody would reveal plasma cells. The scarcity of double-stained B1 and MZB cells in LL and T2R samples supports the hypothesis that the MZB-1 antibody displayed mainly plasma cells rather than B-1/MZ B-cells.

In the type 2 reaction, the authors observed a higher expression of CD20 compared to MZB-1 expression. Given this finding, the authors can propose a similar hypothesis as in the case of the TT group: B1/MZB-cells were also limited in T2R, and existing literature does not indicate an abundance of plasma cells in T2R.25,26

There was no significant difference in the indeterminate (I) leprosy group regarding the expression of the two markers, possibly due to the scarcity or absence of inflammatory cells.

There was also no difference in the expression of CD20 and MZB-1 in T1R. Considering that plasmablasts and plasma cells are recognized to be infrequent in T1R,25,26 the few cells that exhibited MZB-1 immunostaining are likely MZB-cells or B1-cells. The most robust double-labeling for B1 and MZB-cells was observed in T1R lesions. In employing the PAX5/MZB-1 co-localization, the authors excluded plasmablasts and plasma cells, thereby restricting the labeling to B1/MZB-cells.

Interestingly, the disparity between the T1R, T2R, LL, I, and TT groups in PAX5/MZB-1 (B1 and MZB-cells) closely paralleled that observed in PAX5/CD5 (specifically marking B1-cells), suggesting that PAX5/MZB-1 did not display a substantial number of MZB-cells. For both markers (PAX5/MZB-1 and PAX5/CD5), T1R exhibited significantly more cells than T2R, LL, and I. However, uniquely in PAX5/MZB-1, the authors observed a significantly higher cell count in T1R than in TT. Since this discrepancy was not observed in the PAX5/CD5 labeling (B1-cells), the authors attribute it to a difference in the number of MZB-cells, which may be lower in the TT group.

While the authors did not observe a significant number of B1-cells in the lepromatous group, Kotb et al.,30 using peripheral blood flow cytometry, reported a higher percentage of these cells in lepromatous leprosy patients compared to healthy controls. They also associated the presence of B1-cells with autoimmune phenomena in the patient group.

The number of B-effector-1 cells (Be1) was higher in T1R and TT than in the I and T2R groups. The association of Be1-cells with a Th1 response makes this outcome expected. While not achieving statistical significance, LL showed a lower count of Be1-cells compared to TT and T1R, further reinforcing the connection of Be1-cells with the Th1 response in leprosy. Lund and colleagues demonstrated that Th1-cells, specifically those producing IFN-γ or stimulated by IL-12, induce the polarization of B-cells into Be1, leading to the expression of pro-inflammatory cytokines such as IFN-γ and IL-12.15 Conversely, interaction with Th2 cells or exposure to IL-4 directs B-cells, termed Be2, to produce IL-2 and IL-4. Be1 and Be2 cells, in turn, play roles in promoting the in vitro differentiation of Th1 and Th2 cells, respectively.16,31 Subsequently, it was revealed that B-cell-derived IFN-γ plays a crucial role in Th1 responses, contributing to allograft and tumor rejection, autoimmune arthritis, and antibacterial response.32–34

Regulatory B-cells (Bregs) were notably scarce across all leprosy groups studied, with significant differences observed only between the T1R and I groups. It is important to note that, as mentioned earlier, MZB and B1-cells are subtypes of innate B-regulatory cells. However, the number of MZB and B1-cells was higher than that of Bregs. This apparent paradox may be attributed to the fact that the authors identified B regulatory cells based only on the expression of the IL-10 transcription factor c-MAF.

The predominance of Bregs in the Th1 pole aligns with prior studies that have highlighted the protective role of Bregs in various autoimmune diseases such as multiple sclerosis, systemic lupus erythematosus, rheumatoid arthritis, type 1 diabetes mellitus, and inflammatory bowel disease, all of which are associated with Th1 or Th17 cells.35 Additionally, Bregs have been implicated in tumor immunology exerting their immunosuppressive properties within the tumor microenvironment.36

Considering that this study, although it involved a large number of samples, is retrospective and relies on immunohistochemical techniques for identifying B lymphocyte subtypes, the authors have been able to demonstrate and compare the presence of these B-cell subsets across various leprosy lesion sites and reactional states. While there are limitations to this approach, these findings suggest distinct roles for these B lymphocytes, particularly within the tuberculoid pole and Type 1 leprosy reactions.

None declared.

Luis Alberto Ribeiro Fróes: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Visualization, Writing - original draft. Carla Pagliari: Data curation, Investigation. Maria Angela Bianconcini Trindade: Data curation, Investigation, Methodology, Supervision, Writing - review & editing. Mirian Nacagami Sotto: Conceptualization, Data curation, Investigation, Funding acquisition, Methodology, Project administration, Supervision, Validation, Writing - review & editing.
